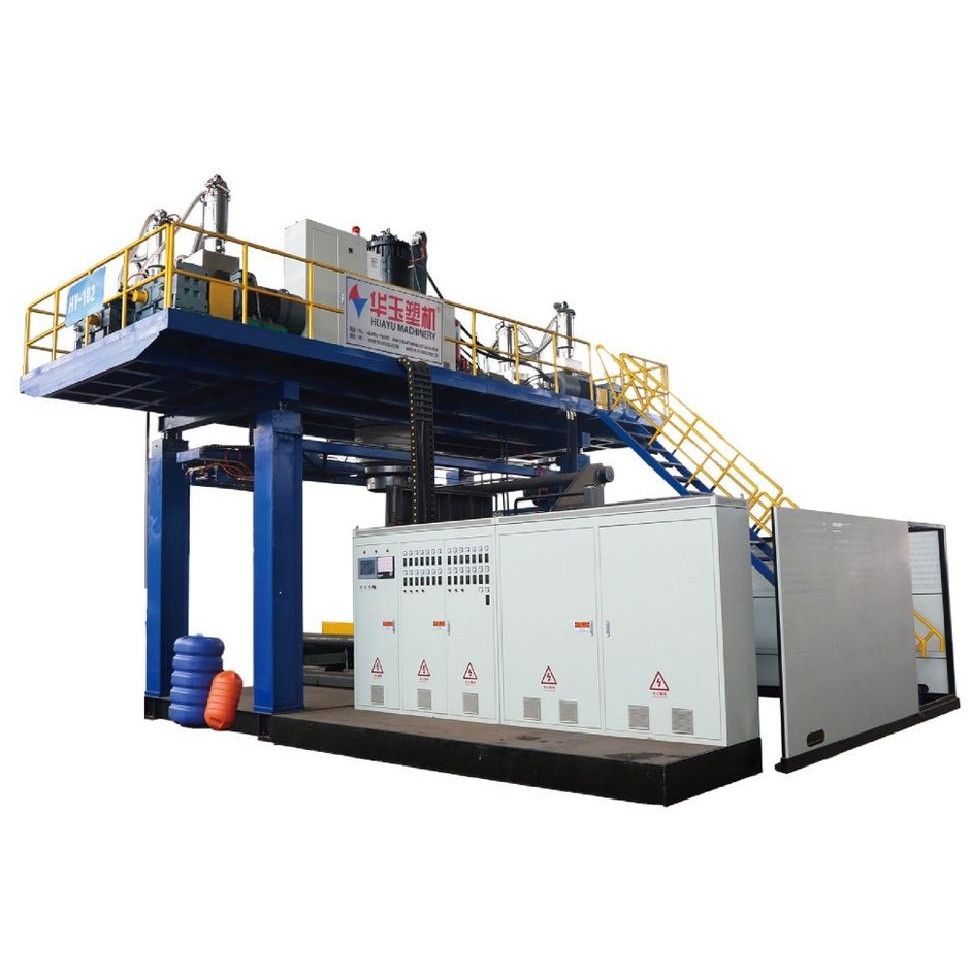

華玉中空吹塑機在設計生產過程中，采用最新科技以及配套設施，如：德國FLENDER 減速 機、西門子PLC 控制器、美國穆格壁厚控制器等，進一步優化設備的整體性能，擴大設備的應用 領域。
經驗豐富的工程師團隊，頂級品牌配件，嚴格的質量管理認證體 系，強大的機械加工能力，鑄就精品華玉塑機!
技術特點
1.華玉自主研發設計螺桿，冷卻更高效，塑化更穩定???2.設備采用西門子模塊化設計，運行穩定，操作便捷。
3世界知名品牌臺灣上銀導軌，多滑塊設計，承重性能更高，運行更穩定?4.華玉專利集成液壓站設計，布局合理，更加節能。
Technical features
1.Huayu?independently develops and designs screws,making cooling more?efficient?and?plasticizing?more?stable?2.The equipment adopts Siemens modular design,ensuring stable?operation?and?convenient?operation.
3.World-renowned brands Taiwan?HIWIN brand guide rail,with?multiple?slider?design,higher?load-bearing?performance?and more?stable?operation
4.Huayu patented integrated hydraulic station?design,with?reasonable?layout?and?more?energy-saving.
|
HY10000L-30000L |
HY10000L-3 |
HY20000L-3 |
HY30000L-3 |
||
|
制品容積 |
Capacityrange |
L |
3000-10000 |
5000-20000 |
3000-30000 |
|
機器尺寸 |
Machine dimension |
M |
15*9.5*10.5 |
16*10*11 |
13.5*9.2*11.5 |
|
平均能耗 |
Average consumption |
KW |
350 |
400 |
400 |
|
總功率 |
Total power |
KW |
590 |
680 |
762 |
|
料缸容量 |
Accumulator capacity |
KG |
300 |
400 |
350 |
|
擠出電機 |
Extruder motor |
KW |
110/132/110 |
110/160/110 |
110/160/110 |
|
螺桿直徑 |
Screw?diameter |
MM |
120/130/120 |
120/150/120 |
120/150/120 |
|
螺桿長徑比 |
Screw L/D?ratio |
? |
28.1 |
28.1 |
28.1/35.1 |
|
塑化能力 |
Plasticizing capacity |
KG/H |
800 |
900 |
950 |
|
模板尺寸 |
Platen?size |
MM |
2800*3000 |
3200*3600 |
3000*3600 |
|
模板開距 |
Platen distance |
MM |
2300-5500 |
3000-6500 |
2200-5200 |
|
鎖模力 |
Clamping force |
KN |
5000 |
6200 |
6200 |
|
伺服電機 |
Servomotor |
KW |
55*2 |
60*2 |
60*2 |
